Rivian

Electric Vehicle Navigation System

I led the effort to design the in-vehicle navigation app for the world's first all-electric pickup truck.

2019-2023

Introduction

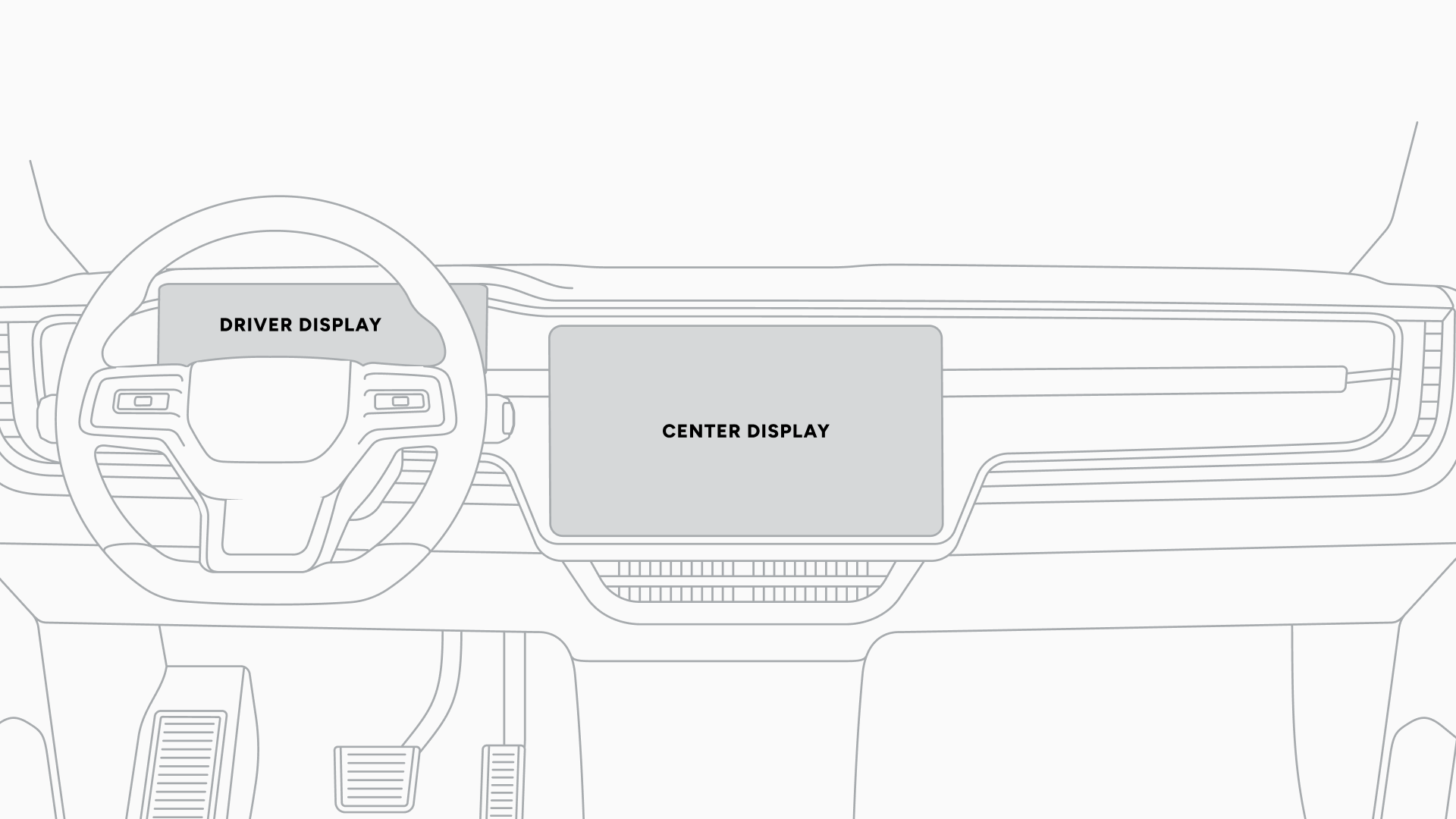

I joined Rivian in 2019 as the second user experience (UX) designer of in-vehicle digital products. As someone who is passionate about navigation, I sought out the assignment to design the in-vehicle navigation app for the world's first all-electric pickup truck, the Rivian R1T, from a "clean sheet."

My primary responsibilities included defining product requirements, creating storyboards, preparing wireframes and prototypes, reviewing my designs with management, and working with the software engineers to bring the designs to life. I also assisted with research studies, submitted patent applications, performed monthly road tests for design verification, and represented Rivian at local automotive and design conferences.

I collaborated with another UX designer, a visual designer, a content designer, a design manager, and several software engineers. Together, we delivered a navigation system for the Rivian R1T at the start of production in the fall of 2021, and we refined it thereafter via over-the-air software updates.

Goals

The goals for this project were as follows:

  1. Nail the essentials of navigation. This includes map tiles, search, routing, and traffic.
  2. Don't make me think when it comes to charging. Offer ways to find and filter nearby chargers, plan charging for long trips, and precondition the battery for fast charging.
  3. Create an interface that is scalable for future growth. Equipped with over-the-air updates, Rivian vehicles will improve with time. The navigation interface should be flexible and allow for the easy incorporation of new features.
  4. Minimize driver distraction. The navigation system is designed to prioritize the driver’s safety and provide essential information, rather than serving as a research tool, like some smartphone navigation apps.
  5. Encourage adventure and exploration. Rivian's mission is to keep the world adventurous forever. We sought to find ways to incorporate this into the navigation experience.

Walkthrough

Below is a video walkthrough of the navigation experience.

Search

We designed the Rivian navigation system to provide the user with various pathways to entering their destination as quickly as possible. These pathways include a recent destinations list, category search buttons, recent searches, search suggestions with word prediction, and results in a list and on a map.

The Rivian R1T stands out as the first production vehicle to feature a button for locating nearby restrooms. This idea came from me, and I collaborated with one of Rivian’s data providers to create a custom restroom category in their database. When users tap this button, they are presented with a list of nearby businesses that are likely to have restrooms, such as coffee shops, restaurants, movie theaters, and hotels.

Recent Destinations
Recent Searches
Search Suggestions
Search Results
Category Search
Add Stop
Saved Destinations

Point-of-Interest Details

The user can choose their preferred route to the destination, with the option to skip highways, ferries, and/or tolls along the way. They can also view details about the destination, including its address, Yelp ratings, phone number, and operating hours. With just one tap, they can either save the destination as a favorite or begin route guidance.

Details Card
Saved Destination
Call Business
Avoid on Route
Hours of Operation
Drop Pin

Turn-by-Turn Guidance

When the user selects a destination and taps "Start," turn-by-turn guidance begins. The system presents a large, uncluttered map window to provide the user a clear view of their surroundings and thereby avoid making a wrong turn.

To limit driver distraction, the user may perform nearly all frequently used functions with just one tap or swipe: view upcoming turns, display an overview of the route, mute turn instructions, adjust the map orientation, overlay nearby charging sites on the map, display a satellite view, and access navigation settings. Live traffic, lane instructions, and real-time rerouting keep the driver, safe, informed, and always on the best route.

Default View
Traffic
Approaching Maneuver
Lane Guidance (Turn List Collapsed)
Lane Guidance (Turn List Expanded)
Route Overview
Approaching Destination
Faster Route Found
Rerouting via Offline Maps
End Navigation
Resume Trip

Charging Sites

Electric vehicle owners who can’t charge at home or are far from home with a low battery must rely on public charging stations. Our system lets drivers filter stations by power level, network, and plug availability. To avoid the legend obscuring the map, I integrated it into the speed filter.

Nearby Chargers
Charging Site Power Filter
Charging Site Network Filter
Charging Site Availability Filter

Electric Vehicle Routing

Electric vehicle owners who’ve taken road trips are familiar with charging anxiety. They have questions like: Which route should I take? Where should I stop and charge along the way? When will I arrive at each stop? How long should I charge there? Which charging network operates the site? How many plugs are available?

To relieve the driver of the burden of planning their charging, we created a trip planner feature. Using the vehicle's current state of charge and the driver's specified destination, the feature prepares an itinerary consisting of a route with charging stops. The itinerary also includes additional details to answer all of the user's questions above.

When the driver approaches a planned charging stop, the vehicle informs the driver that it is preheating or pre-cooling the battery to the optimal temperature for fast charging.

Trip Summary
Trip Details
Charging Stop Details
Turn-by-Turn Guidance
Preconditioning (Turn Panel Collapsed)

Settings

The driver may adjust settings for audio, map orientation, traffic, routing, and search data.

Audio and Map Orientation Settings
Traffic and Route Settings
Search Data Settings

Map

To fulfill the company’s mission of keeping the world adventurous forever, we created a unique map style that highlights mountain ranges, valleys, wilderness areas, rivers, and other natural features, encouraging exploration. A simple interface with few buttons, or elements like a media player that slides out of the way, enables the driver to focus on the map.

Media Player in View
No GPS
Map Orientation Adjustment

Results

The Rivian R1T has garnered numerous awards and accolades for its exceptional vehicle user experience and advanced embedded navigation system.

Winner: 2022 Ward's 10 Best Interiors & UX Award
My colleagues and I accepted the award on behalf of Rivian at the 2022 AutoTech Detroit conference.
Winner: 2022 MotorTrend Truck of the Year
"Rivian's software...takes a huge amount of work out of planning an EV road trip."
The Rivian R1T is the Coolest Pickup Truck Ever Made
“This is one of the few navigation systems I’ve seen that’s easier than just using your phone, and it’s quite simple.”
